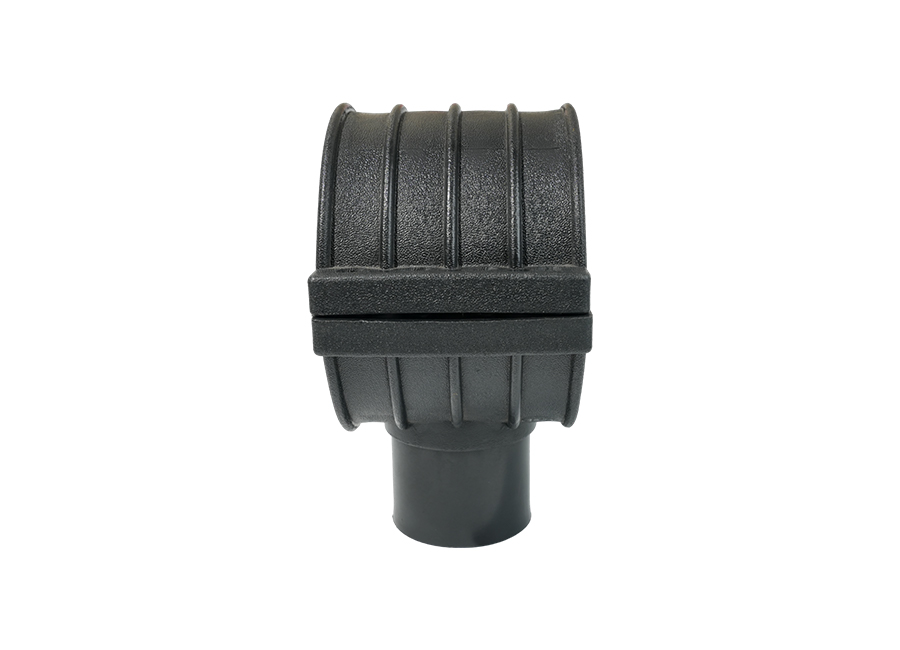

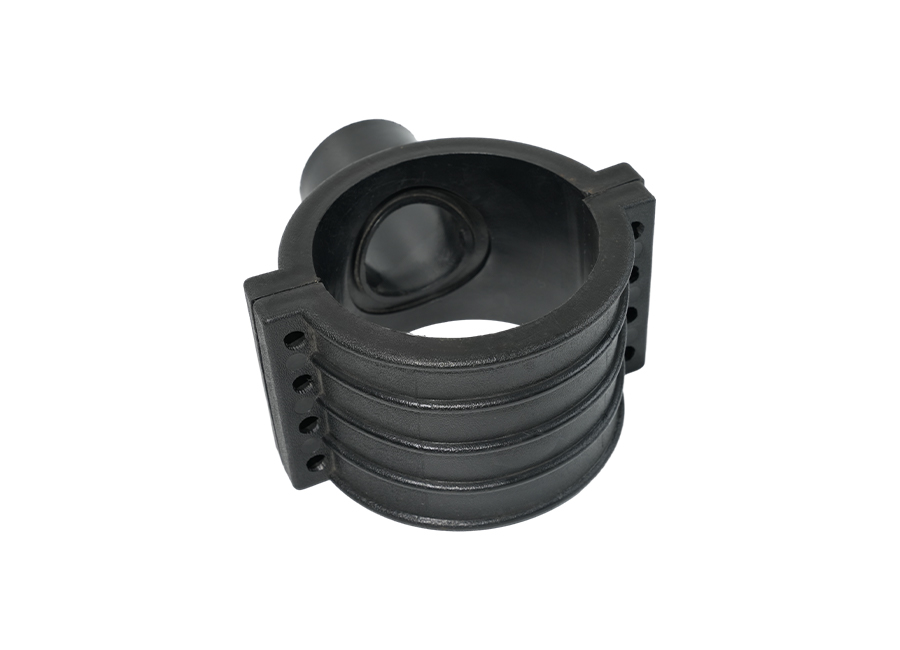

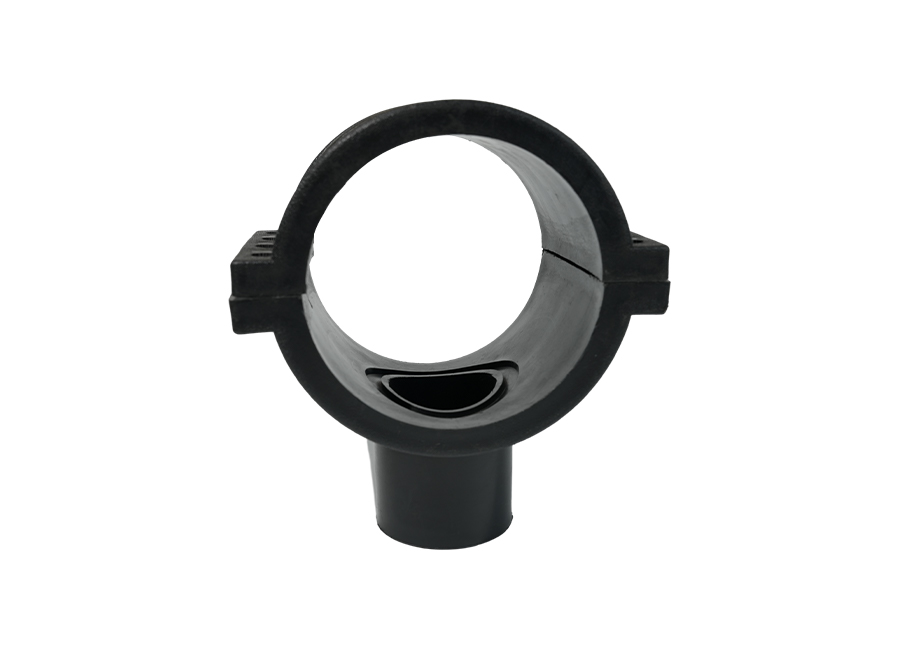

PE100 Saddle Clamp

Material: HDPE PE100 (99.99% virgin material)
Pressure class: PN16 SDR11, PN12.5 SDR13.6, PN10 SDR17
Connection methods: Butt Fusion, threaded connection
Colors: Black, Blue (custom colors available upon request)
Production standards: ISO4427, EN 12201, EN 1555, GB/T 13663.3
Oxidation induction time (210°C): ≥20 min
Chlorophyll: <5 degrees
Turbidity: ≤0.22 NTU
Odor: No odor
PH value: Approximately 7.9
Total dissolved solids: 201 mg/L
Oxygen demand: Approximately 0.6 mg/L
Total organic carbon: 0.25 mg/L
Visual clarity: No visible particles

1. The use of PE100 endows Saddle clamp with wonderful corrosion resistance and wear resistance. Under various complex and harsh working conditions, the Saddle clamp maintains stability and durability, thereby significantly extending its service life.
2. In terms of connection methods, the Saddle clamp supports both threaded connections and heat fusion welding. This type of connection not only improves installation efficiency but also allows the Saddle clamp to be widely applied in various pipeline systems.
3. Saddle clamp is available in a variety of colors, offering not only standard colors such as black and blue but also supporting customized color options. This not only meets customers' aesthetic needs but also makes Saddle clamp more recognizable in the pipeline system, facilitating easier management and maintenance.
4. The oxidation induction time (at 210°C) is ≥20 minutes, which ensures that the Saddle clamp maintains stable performance under high-temperature conditions and is not prone to oxidative degradation. Additionally, indicators such as color <5 degrees, turbidity ≤0.22 NTU, odorless, and no visible objects to the naked eye all demonstrate that the Saddle clamp has wonderful quality in terms of appearance and smell.
