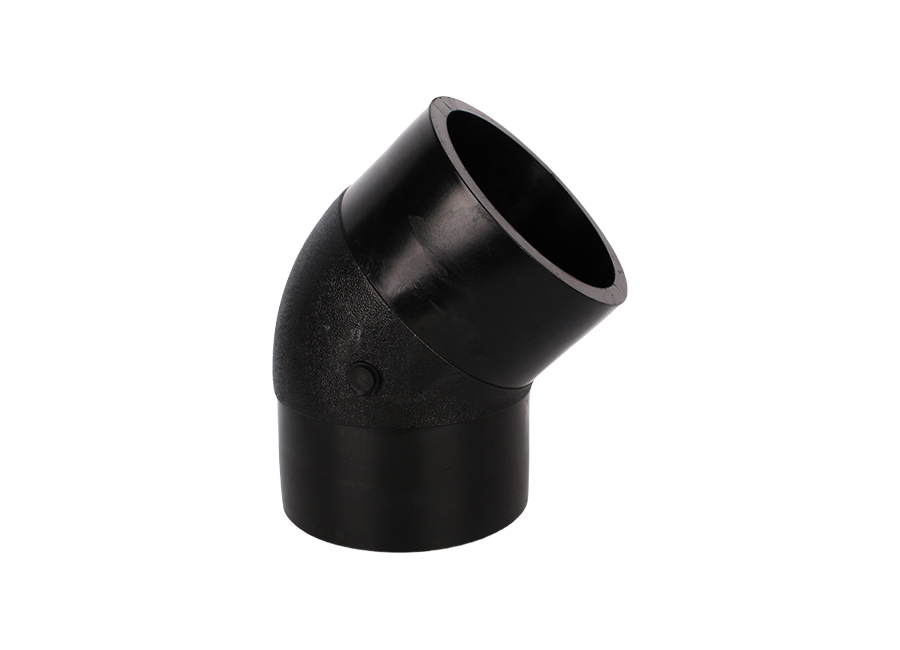

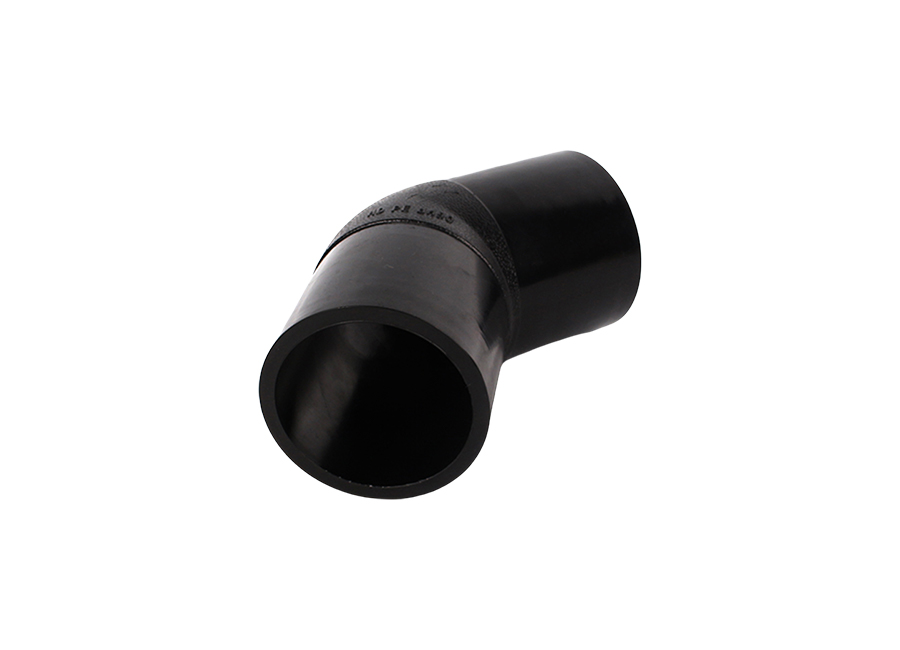

HDPE 45 Degree Elbow

Material: HDPE PE100
Pressure Rating: PN16 SDR11, PN12.5 SDR13.6, PN10 SDR17
Connection Method: Butt Fusion, Socket Fusion
Color: Black, Blue (custom colors available upon request)
Manufacturing Standards: ISO4427, EN 12201, EN 1555, GB/T 13663.3
Oxidation Induction Time (210°C): ≥20 min
Chromaticity: <5 degrees
Turbidity: ≤0.22 NTU
Odor Reading: No odor
PH Value: Approximately 7.9
Total Dissolved Solids: 201 mg/L
Oxygen Demand: Approximately 0.6 mg/L
Total Organic Carbon: 0.25 mg/L
Visual Clarity: No visible particles

1. HDPE (High-Density Polyethylene) fusion fittings can be connected to pipes through either heat fusion socketing or heat fusion butt welding. This not only offers convenient and safe operation but also ensures a solid connection, reducing the risk of leaks and enhancing efficiency.
2. The product is manufactured in compliance with multiple international standards, including ISO 4427, EN 12201, EN 1555, and GB/T 13663.3, ensuring high quality and reliability.
3. An oxidation induction time (at 210°C) of ≥20 minutes indicates that the product has antioxidant properties, which can extend its service life and reduce maintenance costs.
4. Low color, low turbidity, pure water quality: Color <5 degrees, turbidity ≤0.22 NTU, ensuring the purity of the conveyed water, meeting the standards for drinking water, and suitable for various applications with high water quality requirements.
5. The product has a stable pH value, with low levels of total dissolved solids, biological oxygen demand (BOD), and other indicators. It demonstrates chemical stability, capable of resisting the erosion of various chemicals, thereby extending its service life.
