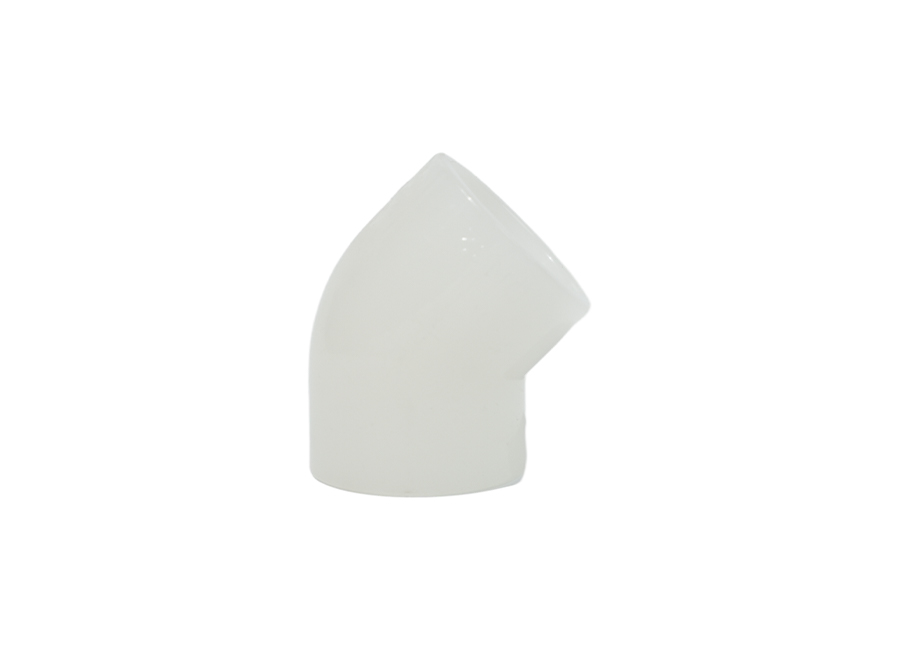

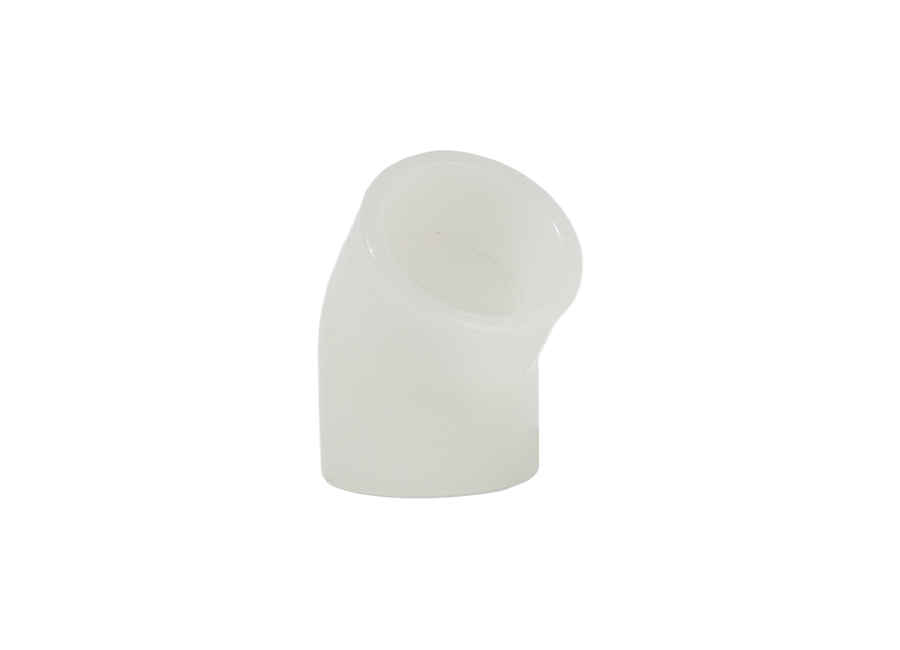

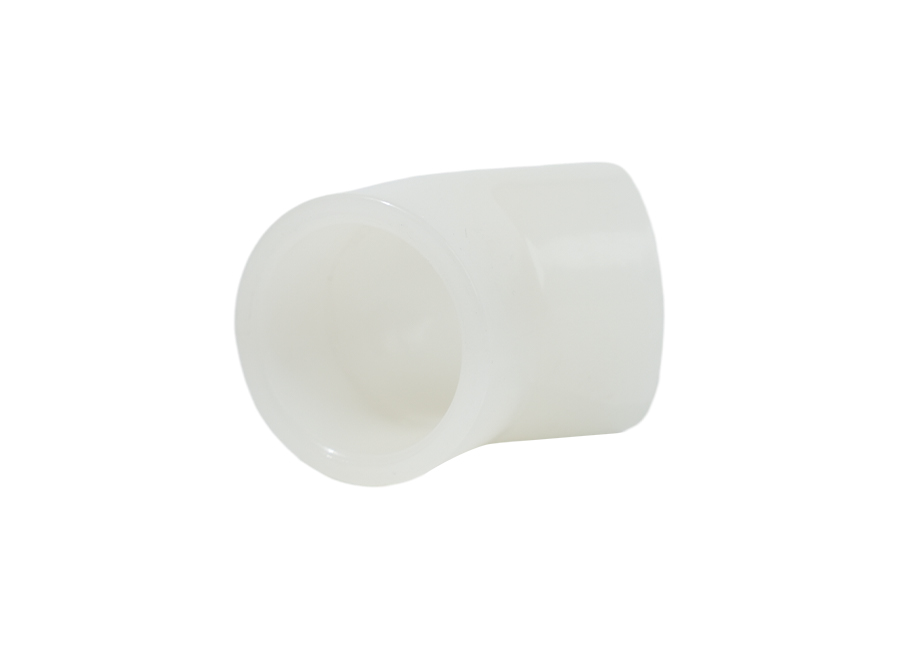

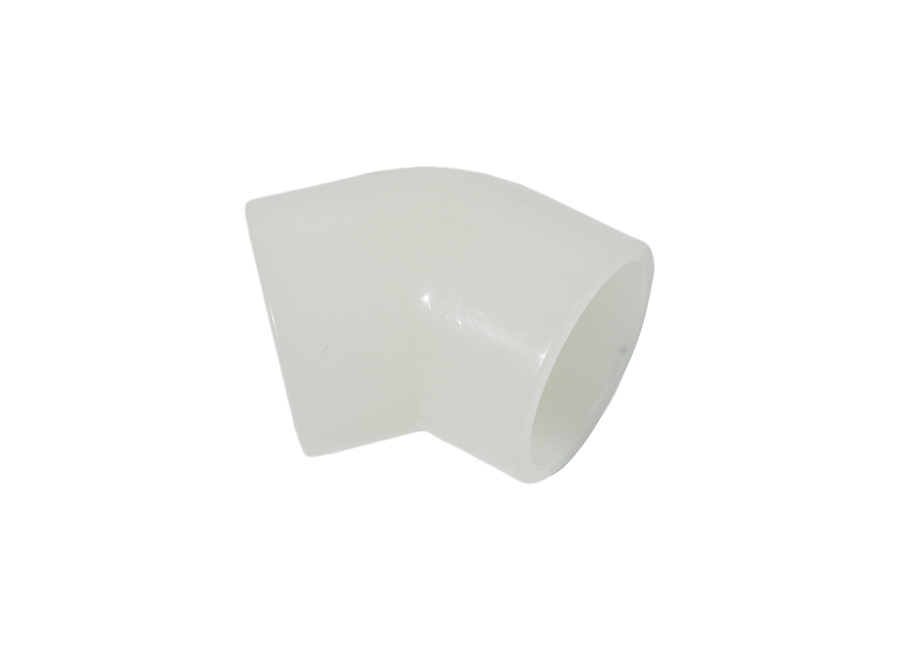

PVDF 45 Degree Elbow

Material: PVDF
Pressure Ratings: 0.6MPa, 1.0MPa
Connection Methods: Socket and Spigot, Welding
Color: White
Production Standards: ISO 10931, DIN 8077/8078, EN 14577
Density: 1.17~1.79 g/cm³
Melting Point: 172°C
Long-term Use Environmental Temperature Range: -40 to 150°C
Heat Deflection Temperature: 112 to 145°C

1. The PVDF 45° elbow is both sturdy and lightweight, with a high melting point of up to 172°C, allowing it to remain stable in high-temperature environments without easily melting or deforming.
2. It is resistant to the erosion of a variety of chemicals, especially performing well in acidic and alkaline environments, providing reliable protection for pipeline systems in industries such as chemical and pharmaceutical.
3. The design of the PVDF 45-degree elbow is rational, and it is convenient to install. Its standard flange connection makes the installation process simple and quick, reducing construction difficulty and costs.
4. The product material is non-toxic and odorless, meets environmental protection requirements, and does not pose a hazard to the environment or users, ensuring the health and safety of workers.
