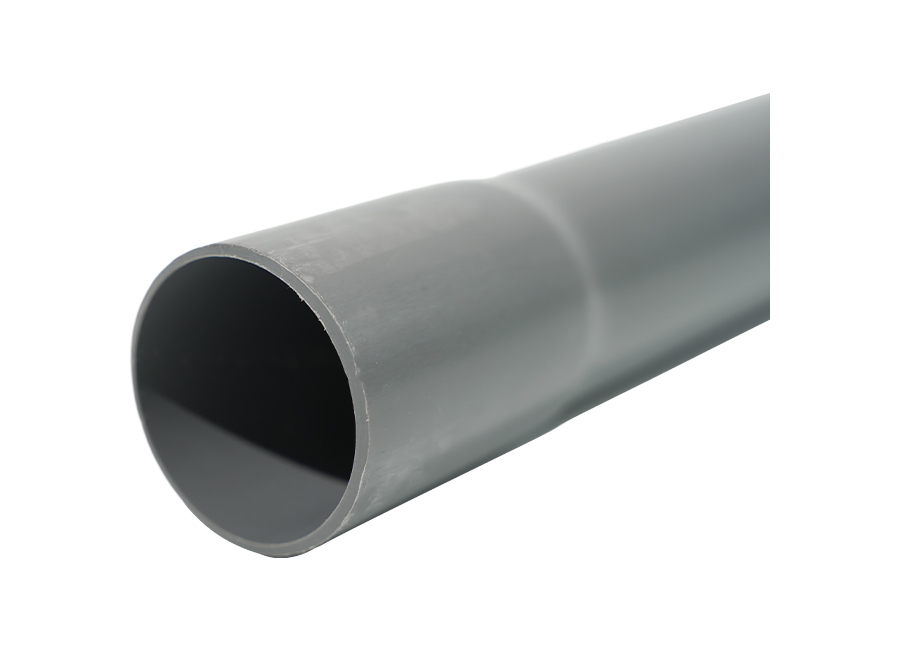

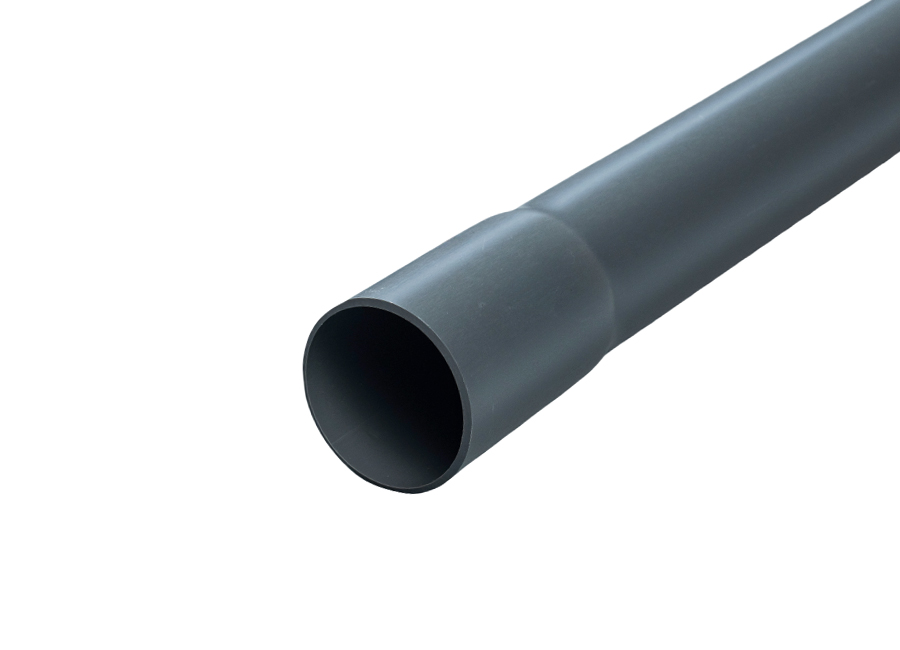

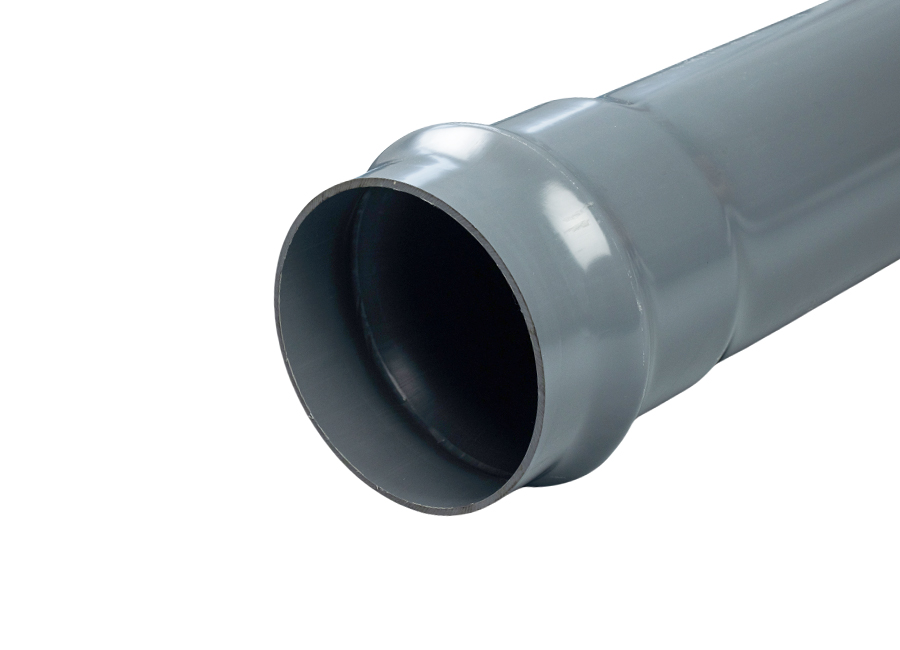

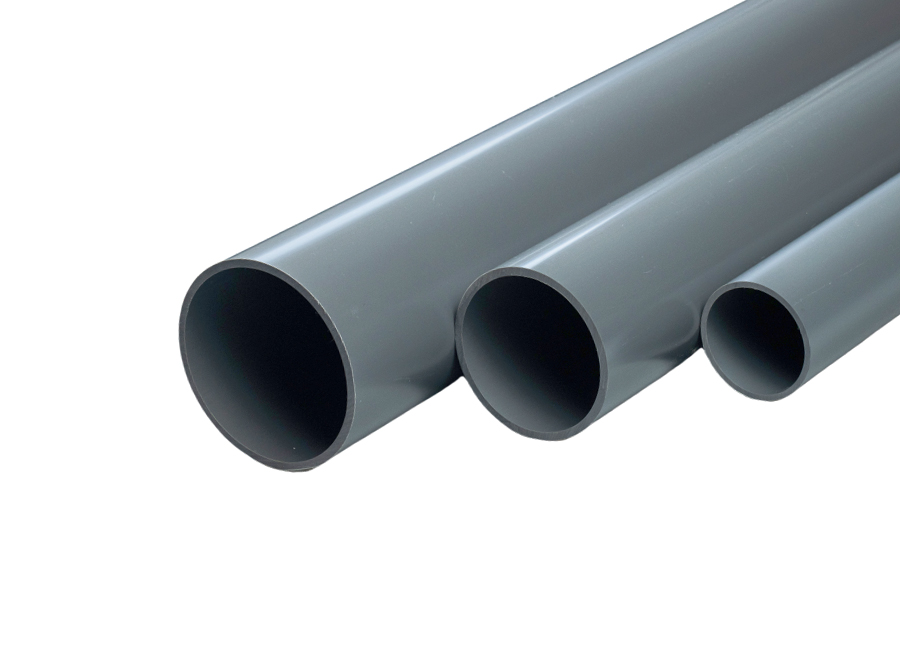

PVC-U pipe

PVC-U pipes, fully known as unplasticized polyvinyl chloride rigid pipes, are made from high-quality polyvinyl chloride resin as the main raw material. The surface of PVC-U pipes is smooth, and the internal structure is uniform, offering wonderful pressure-bearing capacity and impact resistance. In terms of chemical stability, PVC-U pipes are particularly outstanding. They can resist the erosion of various chemicals such as acids, alkalis, and salts, and can maintain stable performance over a long period even under harsh environmental conditions. They are not easily eroded by natural factors like ultraviolet light and oxygen, and can still maintain a good appearance and performance after long-term use. Additionally, due to their low density and lightweight, PVC-U pipes are also more convenient in transportation and installation, significantly reducing construction costs.

Play Video Jiangyin Huada Polyester Plastic Co., Ltd. ORDER SAMPLES Jiangyin Huada Polyester Plastic Co., Ltd.
  • PVC-U pipe
  • PVC-U pipe
  • PVC-U pipe
  • PVC-U pipe
  • PVC-U pipe
  • PVC-U pipe
  • PVC-U pipe

Product Name: PVC-U Pipe
Material: PVC-U
Pressure Ratings: 0.63MPa, 0.8MPa, 1.0MPa, 1.25MPa, 1.6Mpa, 2.0Mpa, 2.5Mpa
Connection Methods: Socket and Spigot, Solvent Cement, Flange Connection
Colors: White, Grey, Green, and customizable options available
Production Standards: ISO4422, GB/T 10002.1-2006; GB/T 5836.2-2006
Density: 1.35~1.46g/cm³
Working Temperature: -20°C to 110°C
Vicat Softening Temperature: ≥80°C
Longitudinal Shrinkage Rate: ≤5%
Drop Hammer Impact Test: 0°C TIP ≤5%
Hydrostatic Pressure Test: No rupture, no leakage
Seal Test: No rupture, no leakage
Sunlight Resistance Test: UV-resistant
Vinyl Chloride Monomer Content: ≤1 mg/kg
Flexural Strength: ≥36Mpa

Product parameter introduction
PVC-U pipe
PVC pipe
Pressure rating 0.63MPa 0.8MPa 1.0MPa 1.25MPa 1.6MPa 2. 0MPa 2.5MPa
OD(mm) OD*thickness OD*thickness OD*thickness OD*thickness OD*thickness 0D*thickness OD*thickness
20 20*2.0 20*2.3
25 25*2.0 25*2.3 25*2.8
32 32*2.0  32*2.4 32*2.9 32*3.6
40 40*2.0 40*2.4  40*3.0 40*3.7 40*4.5
50 50*2.0 50*2.4 50*3.0 50*3.7 50*4.6 50*5.6
63 63*2.0 63*2.5 63*3.0 63*3.8  63*4.7 63*5.8 63*7.1
75 75*2.3 75*2.9 75*3.6 75*4.5 75*5.6 75*6.9 75*8.4
90 90*2.8 90*3.5 90*4.3 90*5.4 90*6.7 90*8.2 90*10.1
110 110*2.7 110*3.4 110*4.2 110*5.3 110*6.6 110*8.1 110*10.0
125 125*3.1 125*3.9 125*4.8 125*6.0 125*7.4 125*9.2 125*11.4
140 140*3.5 140*4.3 140*5.4 140*6.7 140*8.3 140*10.3 140*12.7
160 160*4.0 160*4.9 160*6.2 160*7.7 160*9.5 160*11.8 160*14.6
180 180*4.4 180*5.5 180*6.9 180*8.6 180*10.7 180*13.3 180*16.4
200 200*4.9 200*6.2 200*7.7 200*9.6 200*11.9 200*14.7 200*18.2
225 225*5.5 225*6.9 225*8.6 225*10.8 225*13.4 225*16.6
250 250*6.2 2507.7 250*9.6 250*11.9 250*14.8 250*18.4
280 280*6.9 280*8.6 280*10.7 280*13.4 280*16.6 280*20.6
315 315*7.7 315*9.7 315*12.1 315*15.0 315*18.7 315*23.2
355 355*8.7 355*10.9 355*13.6 355*16.9 355*21.1 355*26.1
400 400*9.8  400*12.3 400*15.3 400*19.1 400*23.7 400*29.4
450 450*11.0 450*13.8 450*17.2 450*21.5 450*26.7 450*33.1
500 500*12.3 500*15.3 500*19.1 500*23.9 500*29.7 500*36.8
560 560*13.7 560*17.2 560*21.4  560*26.7
630 630*15.4 630*19.3 630*24.1 630*30.0
Product advantages

1. PVC-U pipes are an environmentally friendly type of plastic piping that does not cause environmental pollution during production and use, meeting modern society's demands for energy conservation and environmental protection.
2. PVC-U pipes are suitable for a variety of fields and applications. Due to their wonderful performance and wide applicability, PVC-U pipes have a significant competitive advantage in the market.
3. PVC-U pipes have high-pressure resistance and can withstand certain pressures, allowing them to operate stably in high-pressure environments.
4. The surface of PVC-U pipes is smooth with a low coefficient of friction. During fluid transportation, the internal resistance of the pipes is correspondingly reduced, thereby increasing the flow rate and transportation efficiency.
5. Compared to other pipe materials, PVC-U pipes have better sound insulation properties, generating less noise within the pipes, which helps to improve the indoor environment and enhance the comfort of living and working spaces.

Applications
01 / 04
  • Water Supply
  • Irrigation
  • Electric Power Communication
  • Drainage
Water Supply
PVC-U pipes are an ideal choice for water supply systems due to their corrosion resistance, pressure resistance, aging resistance, easy installation, and cost-effectiveness. In indoor water supply systems of residential and public buildings, PVC-U pipes reliably transport cold and hot water, meeting daily water needs. They are commonly used as buried water supply pipes in residential areas and industrial zones, ensuring long-term stability in underground environments. PVC-U pipes are also extensively employed in water supply networks of large cities, providing robust protection for water supply safety.
Learn More
Irrigation
The corrosion resistance, aging resistance, and UV resistance of PVC-U pipes make them an ideal choice for various irrigation scenarios such as farmland, orchards, and greenhouses. Whether it's sprinkler, drip, or micro-irrigation, PVC-U pipes can efficiently transport water sources, improve water use efficiency, and promote crop growth. At the same time, PVC-U pipes are also suitable for rural water improvement projects, solving the irrigation problems brought about by scattered water sources and complex terrain.
Learn More
Electric Power Communication
In terms of power protection, its wonderful resistance to stress cracking, low-temperature impact resistance, and corrosion resistance make PVC-U pipes a stable and safe protective material for the power system. In the field of communication, PVC-U pipes, with their high cost-performance ratio, high flexibility, wonderful flame retardancy, and corrosion resistance, are widely used in various communication pipelines, including highways, national defense, railway communication, and street lighting, effectively protecting communication lines and cables, and improving transmission efficiency.
Learn More
Drainage
PVC-U pipes play a key role in the field of drainage. Their corrosion resistance ensures the long-term stable operation of the pipes in various environments, while the small friction coefficient and smooth inner wall design improve drainage efficiency and reduce the risk of blockage. At the same time, PVC-U pipes have good sealing and connection properties, preventing sewage leakage and protecting environmental hygiene. The lightweight and durable characteristics of PVC-U pipes make transportation and construction more convenient and reduce maintenance costs.
Learn More
Recommended Products
  • PVC-O pipe
    PVC-O pipe

    PVC-O pipes, which stand for biaxially-oriented polyvinyl chloride pipes, are an emerging technologi...

    learn more Jiangyin Huada Polyester Plastic Co., Ltd.
  • PVC-M pipe
    PVC-M pipe

    PVC-M Pipe, fully known as Modified Polyvinyl Chloride Pipe, is a high-performance pipe material tha...

    learn more Jiangyin Huada Polyester Plastic Co., Ltd.
Color your world with excellence and innovation—Jiangyin Huada, your trusted source for premium color masterbatch, high-quality plastic pipes, and fittings.

It is because of our unwavering commitment to the pipe and pipeline industry, our emphasis on product diversity, the importance we place on product quality, and our dedication to green environmental practices and sustainable development that our brand has gradually gained recognition. Our products have earned the trust and praise of numerous customers, and our brand has become a symbol of reliability and trustworthiness.

Our brand story is one of continuous progress and innovation. We will continue to create more value for more customers and contribute to the development of the industry. We believe that through sustained efforts and adherence to our principles, our brand will continue to shine brightly and make a mark internationally.

Jiangyin Huada Polyester Plastic Co., Ltd.
Get A Free Quote

Our products are of quality and performance, ensuring a lifespan of 50 years or more. Additionally, our wholesale and inventory partners can enjoy great value and discounts. Simply fill out an application form and contact us to avail of these discounts.

  • Select one...
    PE Pipe
    PE Fittings
    PVC Pipe
    UPVC Fittings
    PVDF Pipe
    PVDF Fittings
  • Send
news center

Provide you with the latest enterprise and industry news

800+ successful project cases
  • 2024 Jiangsu Jiangyin civil Water Mains Rehabilitation Project
    2024 Jiangsu Jiangyin civil Water Mains Rehabilitation Project
  • 2024 A garden water supply project in Zhejiang 2024 A garden water supply project in Zhejiang
    2024 A garden water supply project in Zhejiang

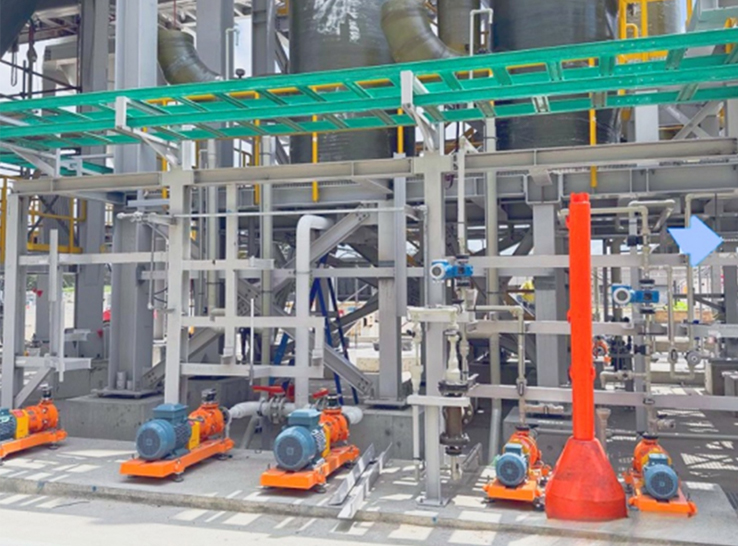

  • 2023 Australia LMG’s Magnesium plant with annual production capacity of 1,000 tons 2023 Australia LMG’s Magnesium plant with annual production capacity of 1,000 tons 2023 Australia LMG’s Magnesium plant with annual production capacity of 1,000 tons 2023 Australia LMG’s Magnesium plant with annual production capacity of 1,000 tons 2023 Australia LMG’s Magnesium plant with annual production capacity of 1,000 tons
    2023 Australia LMG’s Magnesium plant with annual production capacity of 1,000 tons
  • 2023 Jiangyin Xu Xiake Town Sewage Treatment Project 2023 Jiangyin Xu Xiake Town Sewage Treatment Project 2023 Jiangyin Xu Xiake Town Sewage Treatment Project
    2023 Jiangyin Xu Xiake Town Sewage Treatment Project

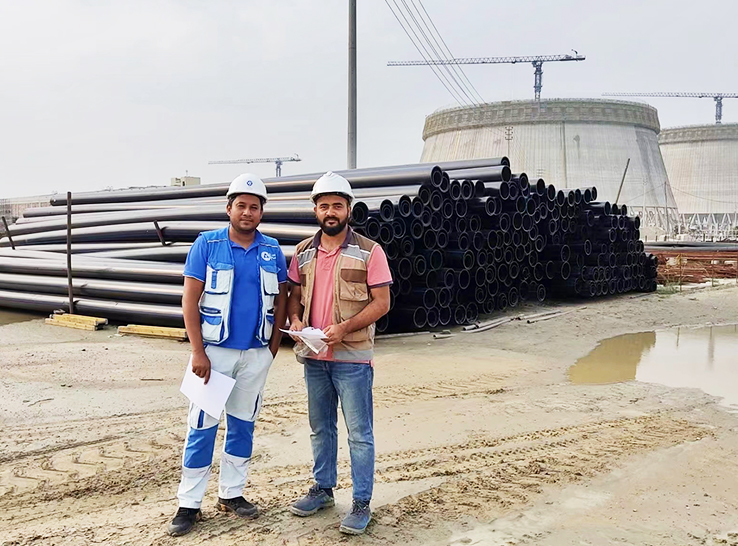

  • 2022 Bangladesh Nuclear Power Plant Feedwater Rehabilitation Project 2022 Bangladesh Nuclear Power Plant Feedwater Rehabilitation Project 2022 Bangladesh Nuclear Power Plant Feedwater Rehabilitation Project 2022 Bangladesh Nuclear Power Plant Feedwater Rehabilitation Project 2022 Bangladesh Nuclear Power Plant Feedwater Rehabilitation Project
    2022 Bangladesh Nuclear Power Plant Feedwater Rehabilitation Project
  • 2022 FIFA World Cup Qatar Tent Hotel Water Supply Project
    2022 FIFA World Cup Qatar Tent Hotel Water Supply Project
  • 2022 Agricultural Irrigation Project in Shanghai 2022 Agricultural Irrigation Project in Shanghai 2022 Agricultural Irrigation Project in Shanghai
    2022 Agricultural Irrigation Project in Shanghai
  • 2020 Saudi Arabia Water Rehabilitation Project 2020 Saudi Arabia Water Rehabilitation Project 2020 Saudi Arabia Water Rehabilitation Project
    2020 Saudi Arabia Water Rehabilitation Project
  • 2018 Tanzania 20KM Water Supply Project
    2018 Tanzania 20KM Water Supply Project
  • 2018 SRTP pipe for fire fighting in a large factory in Russia 2018 SRTP pipe for fire fighting in a large factory in Russia 2018 SRTP pipe for fire fighting in a large factory in Russia 2018 SRTP pipe for fire fighting in a large factory in Russia
    2018 SRTP pipe for fire fighting in a large factory in Russia

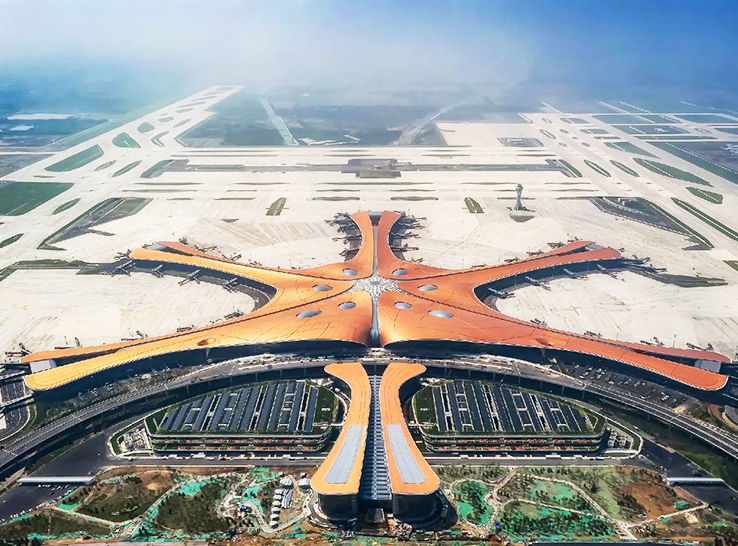

  • 2016 Beijing Daxing International Airport Phase I Water Supply Pipeline Construction 2016 Beijing Daxing International Airport Phase I Water Supply Pipeline Construction 2016 Beijing Daxing International Airport Phase I Water Supply Pipeline Construction
